CNC Milling Machine 2.2kW 220V Water Cooled Spindle Motor with 80mm Holder and Pump Kit

Product Categories

Spindle Motor Kit [774]
Air Cooled Spindle Motor [99]
Cnc Router Controller [20]
Stepper Motor Drive [27]
Gear Box And Rack [13]
Industrial Water Chiller [8]
CNC Woodworking Engraving Machine [7]
Spindle Holder Clamp [3]
Linear Guide Rail [1]
Hybrid Stepper Motor [7]
Planetary Gear Reducer [4]
Cable Drag Chain [3]
Chassis Control Cabinet Box [3]
Ungrouped [1]

Jinan Yinfan Electromechanical Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

CNC Milling Machine 2.2kW 220V Water Cooled Spindle Motor with 80mm Holder and Pump Kit

Name: CNC Milling Machine 22kW 220V Water Cooled Spindle Motor with 80mm Holder and Pump Kit
Brand: changsheng
Price: 205.00 USD

Quality CNC Milling Machine 2.2kW 220V Water Cooled Spindle Motor with 80mm Holder and Pump Kit wholesale

Place of Origin : Jiangsu, China

Condition : New

Applicable Industries : Construction works

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Brand Name : changsheng

Application : Milling, Woodworking engraving and milling

Maximum Torque : 0.88Nm

Drive : Inverter

Operating Speed : 24000rpm

Warranty : 1 Year

Core Components : Motor

Brand : Changsheng

Power : 2.2kW

Voltage : 220v or 380v

Frequency : 400HZ

Current : 8A

Diameter : 80mm

Cooling system : Water cooling

Net weight : 5.0KG-5.5KG

After Warranty Service : Video technical support

Local Service Location : None

After-sales Service Provided : Video technical support

Packaging Details : Customized

Port : qingdao ,shanghai

Supply Ability : 5000 Piece/Pieces per Month

Price : $205.00 - $230.00/pieces

MOQ : 1pc

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

CNC Milling Machine 2.2kW 220V Water Cooled Spindle Motor with 80mm Holder and Pump Kit

Product introduction

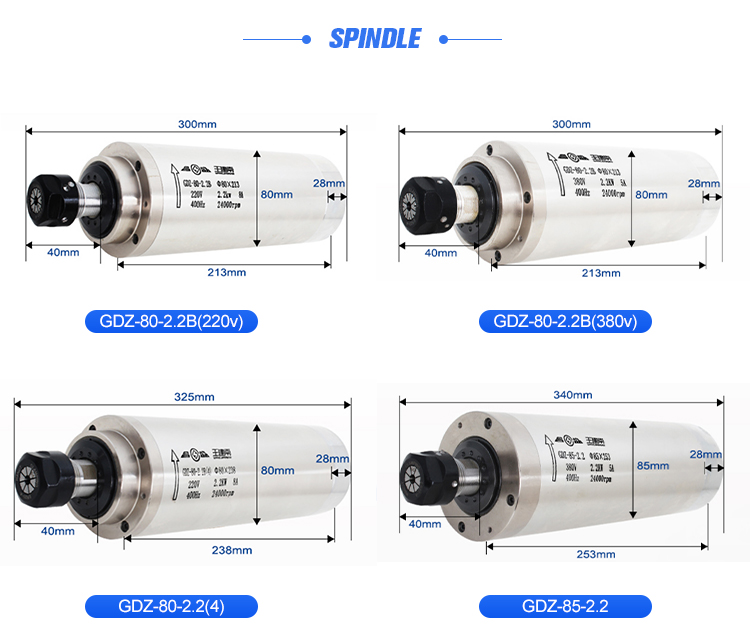

Model	Power	Voltage	Current	Specification	Speed	Frequency	Bearing
GDZ-80-2.2B	2.2kw	220v	8A	Φ80*213mm	24000rpm	400Hz	3
GDZ-80-2.2B	2.2kw	380v	5A	Φ80*213mm	24000rpm	400Hz	3
GDZ-80-2.2(4)	2.2kw	220v	8A	Φ80*238mm	24000rpm	400Hz	4
GDZ-85-2.2	2.2kw	220v	5A	Φ85*253mm	24000rpm	400Hz	4

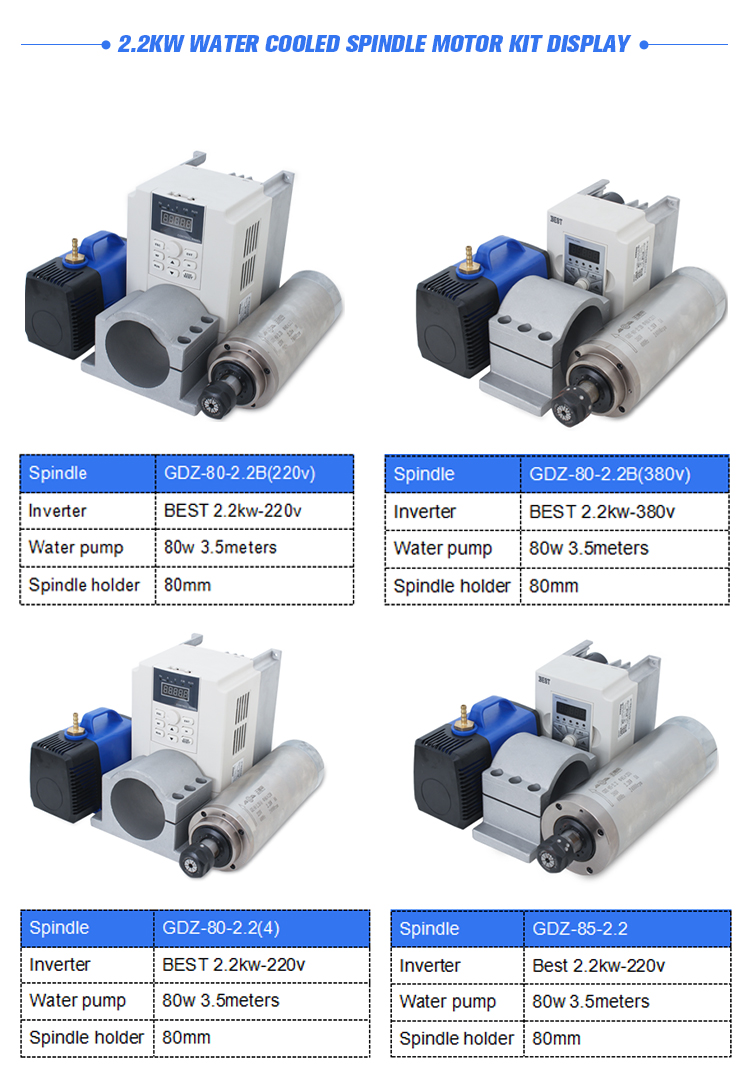

Spindle motor kit

Note

Packing and shipping

Company Profile

Jinan Yinfan Electromechanical Equipment Co., Ltd. is located in Jinan City. It was established in October 2008. It is a high-tech enterprise specializing in R&D, production,serves in the engraving equipment industry. Our main products include water spindle ,air cooled spindle,ATC spindle, our products are widely used in many fields ,such as precise carving ,CNC drilling and milling machine. Jinan Yinfan's own brand (Yinfan) (GDZ) , and its products sell in Vietnam, Brazil, Pakistan, India, Algeria and other countries. The products are in stock all year .it satisfied with various CNC engraving machine and provide free technical support for all engraving industry. Welcome the friends from all over the world to cooperate with us.
